Njord upgrade
3-way floorstanding loudspeaker 8"+4"+1"
Project started with older Seas Njord pair of loudspeakers. Because it can be done better (8 inch 2-way with tweeter with Fs above 1kHz + shallow slopes are not good ingrediences), adding midrange was quite obvious step. Njord cabinets were repurposed and changed to woofer cabinets.

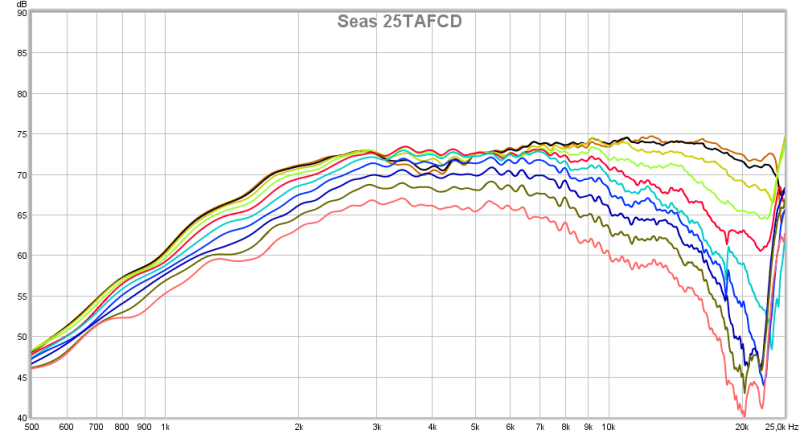

Seas 25TAFCD H 0-90

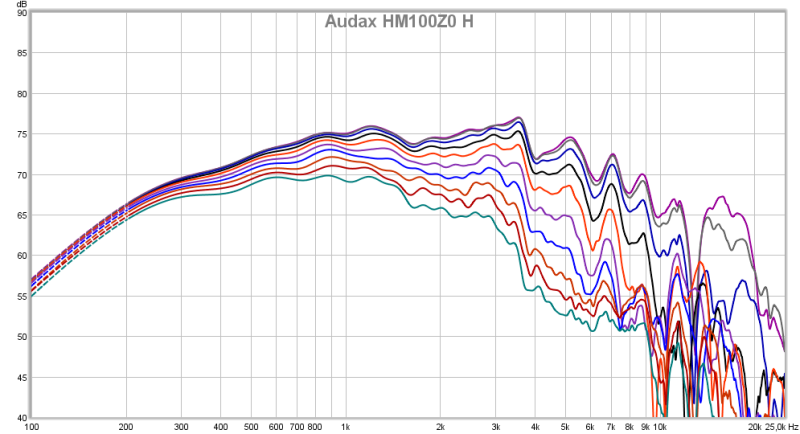

Audax HM100Z0 H 0-90

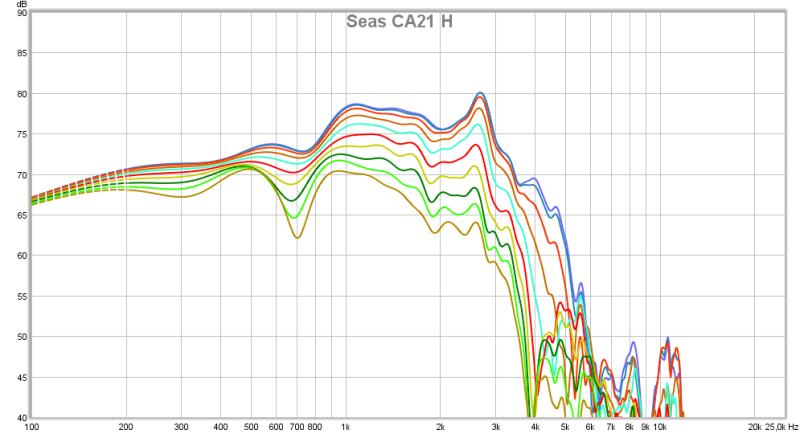

Seas CA21REX H 0-90

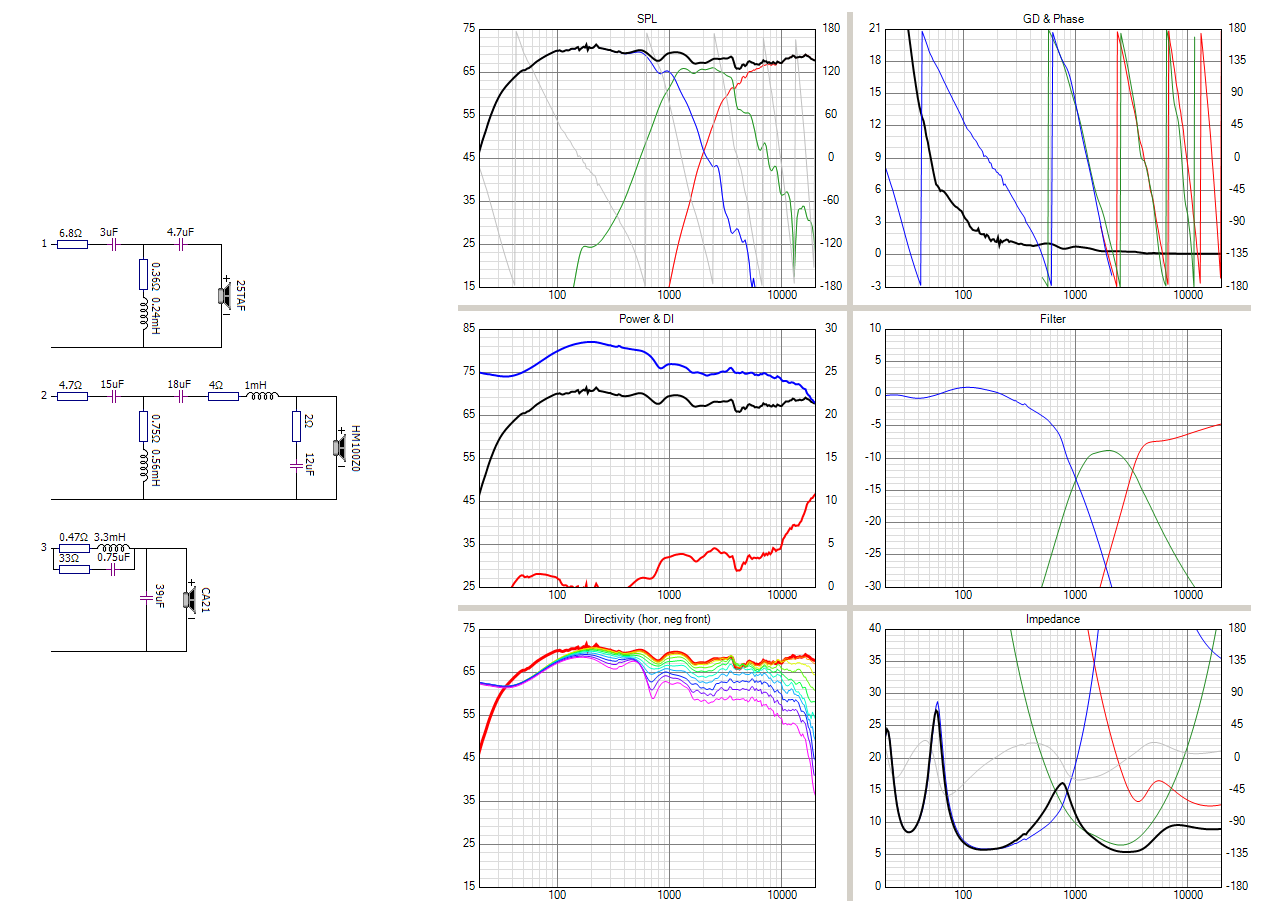

Crossover and crossover modelling
